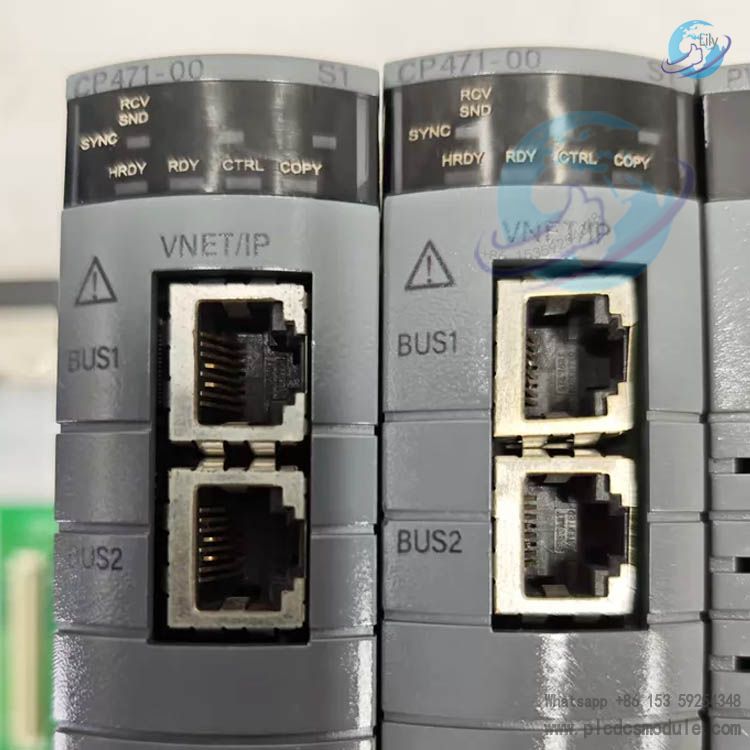

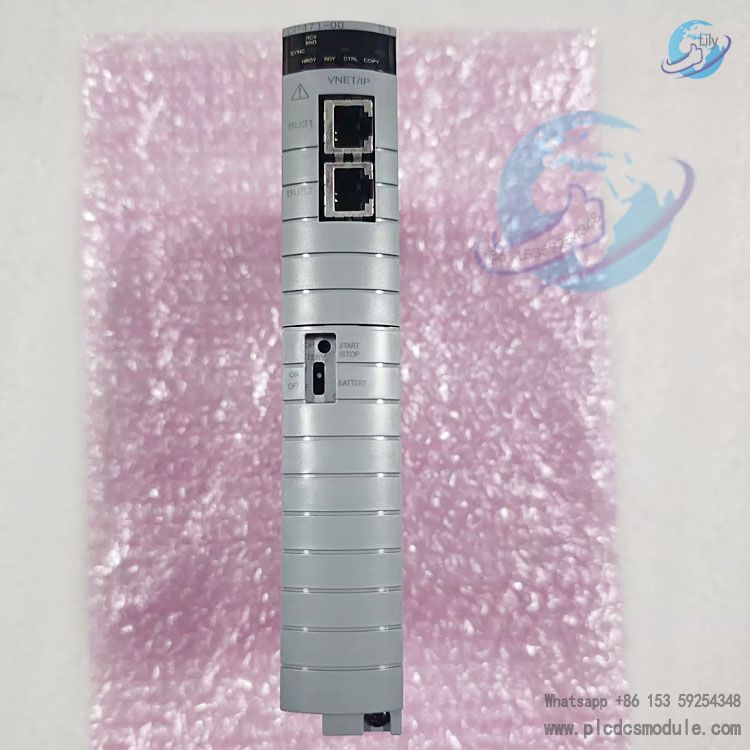

CP471-01 is a dedicated field control station processor module for Yokogawa CENTUM VP distributed control system. Compatible with AFV-series field control units, it serves as the core arithmetic unit of field control stations. It executes PID regulation, sequence control logic, fieldbus data communication, as well as process data acquisition and computation, acting as the core hardware ensuring stable operation of the entire plant.
This original factory module adopts a dual redundant architecture, enabling online maintenance without production shutdown. Meanwhile, it is the official upgraded replacement model for the legacy CP461 processor, fully compatible with the latest CENTUM VP control software. Developed specifically for explosion-proof and highly corrosive working conditions, it meets compliance requirements for high-risk sites such as chemical and oil & gas industries.

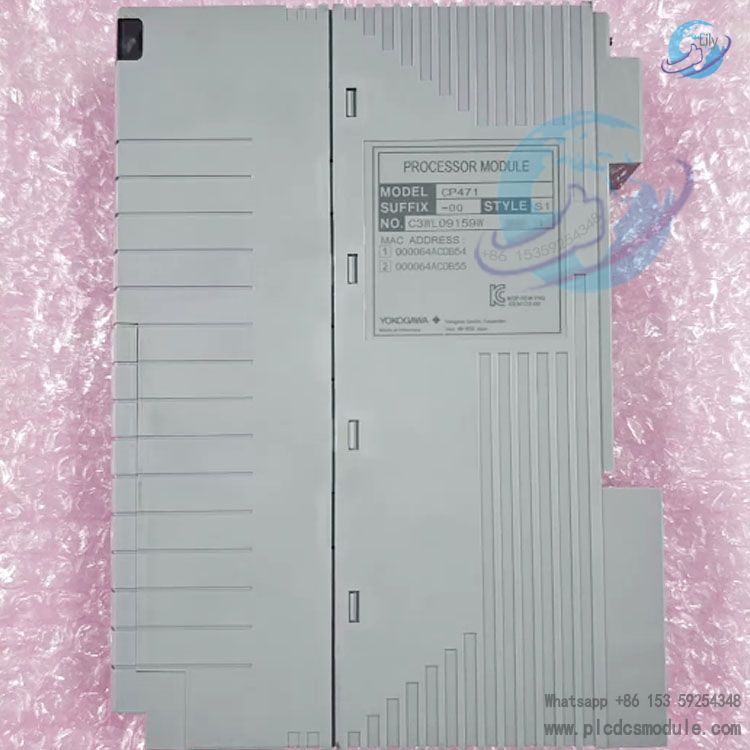

Model Code Breakdown
Model breakdown based on the coding rules specified in Yokogawa Original Specification Sheet GS 33J60E30-01EN:CP471: Base model, denoting high-performance processor module for CENTUM VP field control stations, compatible with all AFV series field control units including AFV30, AFV40, A2FV50 and A2FV70.
1st suffix digit (-0 / -1): Explosion-proof grade classification-0: No explosion-proof certification, for ordinary control room deployment-1: With FM NI explosion-proof certification, dedicated for hazardous chemical areas (this CP471-01 unit falls under this specification)
2nd digit (0 / 1): Environmental grade selection0: Standard basic version, for clean conventional control rooms1: Equipped with ISA G3 anti-corrosion protection, suitable for environments with corrosive gas and heavy dust
Optional extension code /ERFI: Enhanced radio frequency interference resistant variant, applied in power plants, substations and other strong electromagnetic interference environments.
Hardware & Functional Product Features
1. Basic Hardware Specifications
- Overall weight: approx. 700g
- Overall dimensions: 199.5mm × 149mm × 32.8mm, dimensional tolerances comply with industrial standard JEM 1459
- Standard accessory: T9044AR processor change log label for on-site maintenance recording

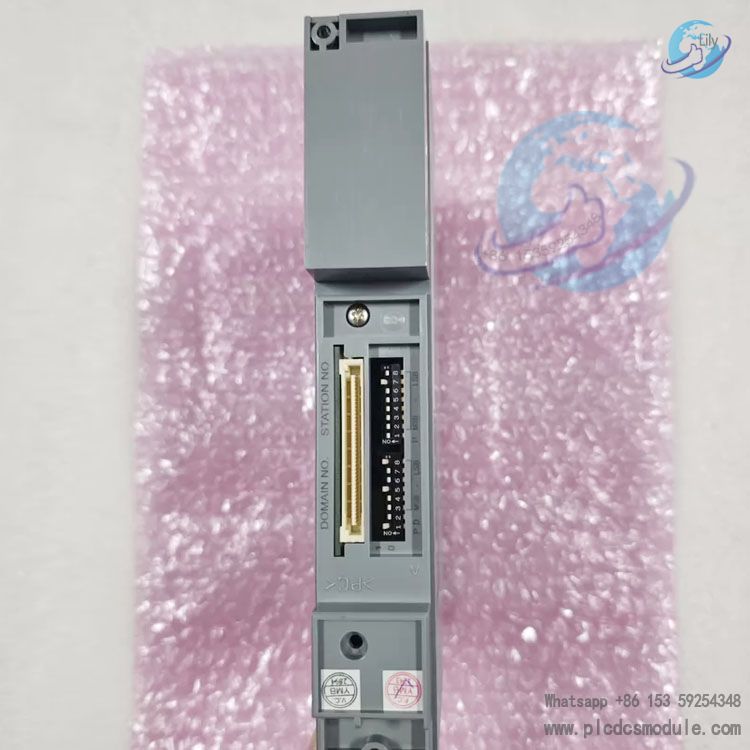

- Mounting method: Rack backplane plug-in type with standardized industrial module snap structure
2. Core Functional Characteristics

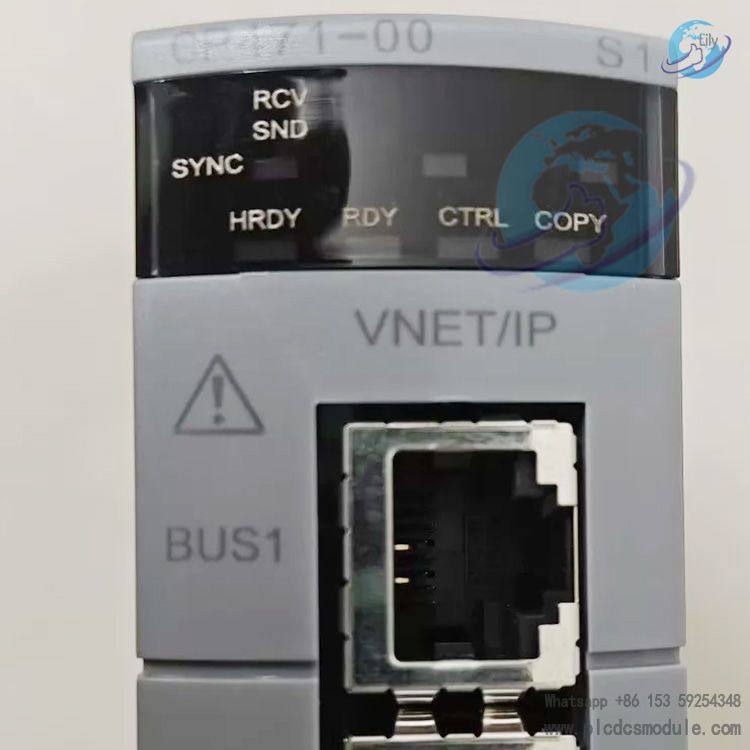

- Dual redundant hot standby operation: Two CP471 modules are installed in pairs inside dual-redundant field control units (AFVxxD). Millisecond-level bumpless switchover occurs upon main processor failure without process fluctuation.
- Online hot-swap capability: Under redundant configuration, maintenance personnel may directly remove faulty modules and insert new units, which will automatically synchronize data to maintain uninterrupted production.
- Bus communication matching requirement: Must be paired with EC401 ESB bus coupler version S3 or higher to guarantee high-speed backplane data transmission.
- Mandatory software & firmware version requirement: The control function software version of the field control station shall be CENTUM VP R6.05 or newer; older system versions fail to recognize this module.
- Mixed hardware restriction: CP471 and CP461 cannot be mixed within a redundant rack; full pair replacement is mandatory.
- Explosion-proof zone mounting limitation: For CE-certified zones, CP471-01 can only be fitted to AFV30-S units with suffix -1. For non-CE zones, matching FM NI certified explosion-proof cabinet backplanes are required.
Product Advantages
- Compliant Explosion-Proof ConfigurationModels with suffix -1 come pre-certified to FM NI explosion-proof standards, allowing installation in hazardous areas without additional cabinet modification.
- Redundancy Design Enables Maintenance Without ShutdownWhen deployed in dual-redundant pairs, faulty modules can be replaced online individually by maintenance staff with no plant shutdown required.
- Seamless Upgrade for Legacy SystemsYokogawa official supports full-group online replacement of CP461, eliminating the need to replace the entire field control station hardware and cutting renovation costs.
- Excellent Resistance to Harsh EnvironmentsBuilt-in hardware complying with ISA G3 anti-corrosion standard extends service life in corrosive atmospheres including hydrogen sulfide, acid and alkali vapors.
- Full Compatibility with New-Generation SystemsFully compatible with CENTUM VP R6.05 and later control software versions, and supports high-speed communication over the new-generation ESB bus.
- Standardized Hardware DimensionsUniform module form factor compatible with standard cabinet backplanes, simplifying system retrofits and spare parts inventory management.
Applicable Industries & Scenarios
Leveraging three core strengths including explosion-proof performance, high reliability and non-stop redundant operation, this module is widely adopted in continuous-production and high-risk process industries:
- Petrochemical IndustryFor refinery units, synthetic ammonia plants and fine chemical reactor control. CP471-01 is the preferred model for explosion hazardous zones.
- Oil & Gas Extraction and Storage & TransportationOilfield gathering stations and LNG tank yards featuring dual harsh conditions of heavy corrosion and flammable & explosive hazards.
- Power IndustryDCS control for thermal power and cogeneration units; configured with the /ERFI anti-interference option.
- Pharmaceutical & Coal Chemical IndustryStable operation of ISA G3 anti-corrosion variant on continuous pharmaceutical production lines and coal-to-olefin facilities.
- Water Treatment & PapermakingLarge-scale continuous-process factories. CP471-00 is available for sites without explosion-proof requirements, while CP471-01 is adopted for workshops with hazardous chemicals.
CP471 vs CP461 Comparison
| Comparison Item | CP471-01 (This Model) | CP461 (Legacy Processor) |
|---|---|---|
| Explosion-Proof Configuration | Supports suffix -1 with FM NI certification for hazardous classified areas | No dedicated explosion-proof variant; extra cabinet modification required for high-risk environments |
| Environmental Protection | ISA G3 anti-corrosion option available to resist corrosive gas | Only standard basic version; prone to high failure rates under heavily corrosive conditions |
| System Version Compatibility | Minimum requirement: CENTUM VP R6.05; compatible with new-generation FCS | Only compatible with R5 and early low-version R6 systems; incompatible with new A2FV70 units |
| Redundancy Switchover Performance | Optimized synchronization algorithm, bumpless switchover without control oscillation | Longer data synchronization delay during switchover; minor process fluctuation likely in complex control loops |
| Hardware Upgrade & Supply Status | Supports full-group online upgrade; long-term spare parts supply guaranteed | Being phased out, no longer prioritized by the manufacturer; extended lead time for spare parts procurement |
| Communication Performance | Compatible with EC401 S3 and above high-speed ESB bus | Only supports early low-revision EC401 with limited bus bandwidth |
| Compatible Cabinets | All new and legacy AFV series control stations: AFV30/40/50/70 | Only legacy AFV30/AFV40; incompatible with A2FV50/A2FV70 |
List of Matching Hardware
- Core Matching Field Control Units (Mounting Carriers)Redundant models (dual CPU configuration): AFV30D, AFV40D, A2FV50D, A2FV70DSingle-unit models (single CPU configuration): AFV30S, AFV40S, A2FV50S, A2FV70S
- Matching Bus ModulesEC401 ESB bus coupler with revision code S3 or higher; communication failure will occur with revisions lower than S3.
- Matching System SoftwareCENTUM VP field control station control software, version R6.05 or above. Systems running R5 / R6.01-R6.04 require separate dedicated patches to be installed.
- Auxiliary Explosion-Proof AccessoriesOriginal factory explosion-proof sealed terminals and cabinet grounding busbars for hazardous areas; grounding resistance ≤ 1Ω.
- Optional Extended Accessories/ERFI radio frequency interference resistant option, T9044AR hardware modification record label, original factory anti-static extraction & insertion tool.
Frequently Asked Questions
Q1: How to distinguish CP471-00 from CP471-01 during purchasing? What consequences will arise from wrong model selection?A: The trailing digit 0 means no explosion-proof certification, while digit 1 stands for FM NI explosion-proof certification. CP471-01 shall be ordered for explosion-proof workshops. If CP471-00 is mistakenly applied, the site safety supervision inspection will fail and the equipment is prohibited from commissioning. CP471-00 is recommended for ordinary control rooms for better cost performance.
Q2: Our existing system uses CP461 processors. Can our on-site electricians replace them with CP471-01 by themselves?A: No. Official Yokogawa specifications strictly prohibit users from performing self-upgrade and replacement. The replacement procedure involves software version upgrade, bus module verification and redundant synchronization parameter configuration, which must be completed on-site by certified Yokogawa engineers as a full set operation. Unauthorized replacement may lead to system shutdown and program loss.
Q3: One CP471-01 module inside the cabinet is faulty. Can I purchase a single unit for replacement and mix the new one with the old one?A: Single-module online replacement is permitted under redundant configuration, provided both modules belong to the CP471 series. Mixing one CP471 and one CP461 is not allowed. Wait until data synchronization finishes before switching to automatic control after replacement.
Q4: Are there any version requirements for the EC401 bus module when using CP471-01? Is the old S2 version usable?A: Mandatory requirement: EC401 with style code S3 or higher. Legacy S1 and S2 bus couplers are incompatible. Continuous bus communication faults will be triggered after installation, making normal operation impossible.
Q5: What restrictions apply when installing CP471-01 inside an AFV30 explosion-proof cabinet?A: For CE-certified areas, CP471-01 can only be installed on AFV30-S models with suffix -1. For FM NI explosion-proof sites outside CE regions, matching dedicated backplanes are required. Standard backplanes with suffix -0 are incompatible with explosion-proof CPU modules.
Q6: Is production shutdown required when replacing CP471-01 under redundant mode?A: No. The dual redundant architecture supports online hot-swap replacement. As long as the standby CPU maintains normal synchronization, production runs continuously throughout the replacement process without downtime losses.
Q7: Can I downgrade CP471-01 back to CP461?A: Reverse replacement is prohibited by the manufacturer due to incompatible hardware architecture and underlying communication protocols. Forced replacement will take the entire field control station offline and cause loss of control over the whole plant.
Q8: Do I need to order separate explosion-proof certificates when purchasing CP471-01?A: Models with suffix -1 inherently carry FM NI explosion-proof qualification, and matching explosion-proof documents are delivered together with goods by the factory. Specify your site classification (CE / FM NI) when placing orders; suppliers will provide compliance documents for safety supervision audits accordingly.
