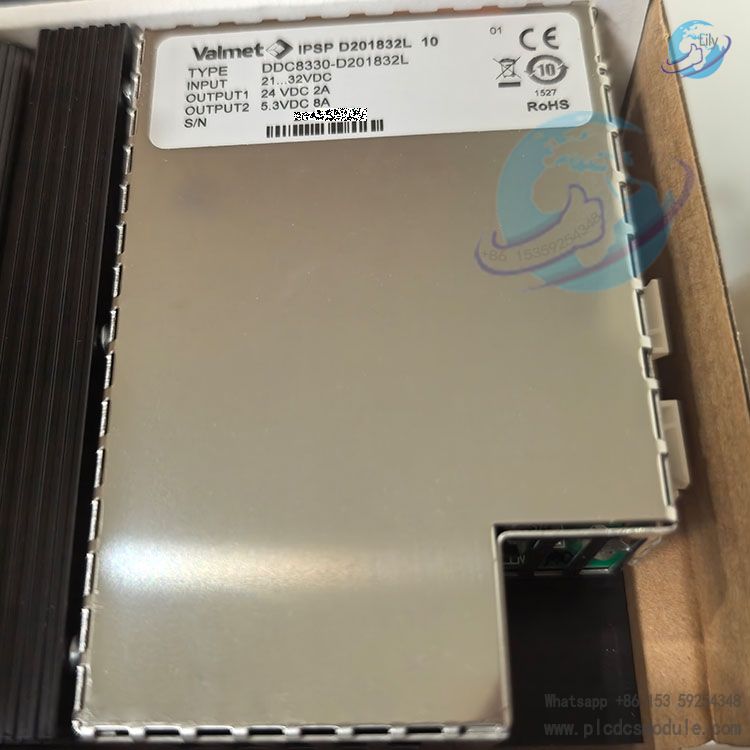

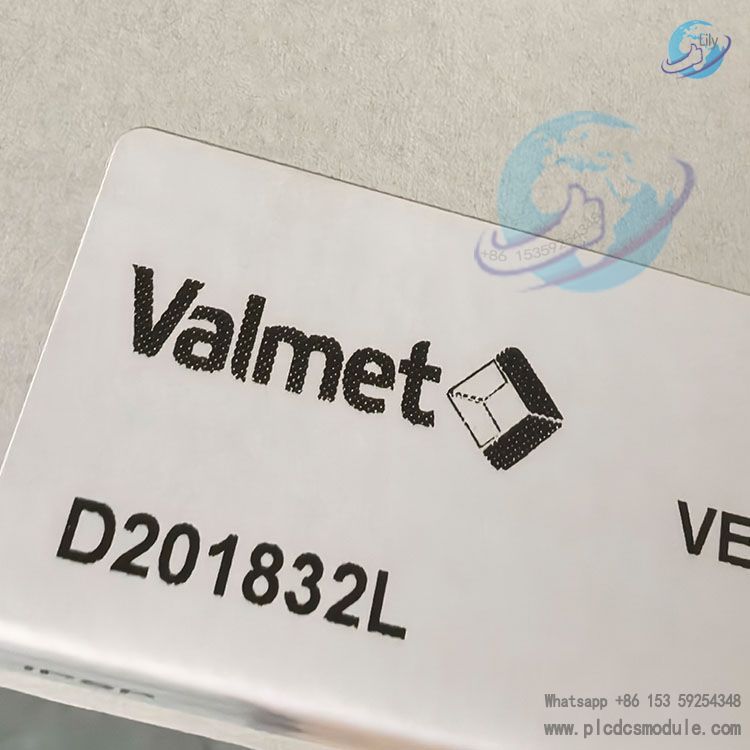

METSO/Valmet D201832L Module Control Card Board
Product Overview
METSO/Valmet D201832L is an IPSP Integrated Power & Processor Module, the core control board within the ACN CS controller stack. It undertakes dual tasks of system power conversion and board‑level processing. D201832L supplies stable internal power rails for CPU and IO modules in the complete rack, and meanwhile performs internal controller timing sequence, power supply monitoring and basic diagnosis functions. It is an indispensable unit for the whole automation rack.
D201832L is widely deployed in pulp & paper, mining process control sites. It is a hardware with large installed base and a high‑demand spare part in industrial spare‑part market. When faults such as complete rack power loss or communication abnormality occur in the system, D201832L shall be prioritized for troubleshooting.
Technical Specifications
| Input Voltage | 21‑32VDC, partial hardware versions support 115/230VAC input conversion |
| Output Power Rails | 5.3VDC, 24VDC, total output current approx. 8A |
| Hardware Type | IPSP Integrated Power & Processor Module, rack slot‑mounted board |
| Hardware Revision | Common 3B‑3, 3B‑4 revisions, alias DDC8330‑D201832L |
| Installation | Plug‑in for MBM80 series rack backplane slot; data & power transmitted via backplane bus |
| Operating Ambient Temperature | 0℃‑55℃, indoor cabinet installation, IP20 protection class |
| Communication Interface | On‑board multi‑port Ethernet, supporting internal controller bus interaction |
| Weight | Approx. 0.72kg |
Core Advantages
- Integrated hardware design. Single D201832L completes both power conversion and basic processing, reducing internal rack hardware quantity and lowering wiring failure points.
- On‑board real‑time power status monitoring, able to report over‑current, under‑voltage and over‑temperature alarms, helping operation & maintenance staff identify hardware risks in advance.
- Natively compatible with full range of Metso/Valmet ACN controller hardware. No extra adapter required; plug directly into corresponding rack for commissioning.
- Industrial‑grade component selection, adaptable to dusty and vibration‑prone working conditions such as pulp & paper and mining, delivering strong stability for long‑term continuous operation.
Supports hot‑swap rack architecture. On‑line replacement of D201832L is available under partial system configurations to shorten downtime for maintenance.
Product Features
- D201832L adopts integrated fin‑type heat dissipation structure to enhance thermal performance under high‑power operation and avoid temperature‑derated running.
- Built‑in short‑circuit and overload protection. When short‑circuit occurs on rear‑end IO loop, D201832L will trigger protection to prevent cascading damage to controller CPU board.
- All signal and power are transmitted via backplane bus; only main input power needs external access, minimizing external wiring.
- On‑board hardware diagnostic registers. Upper‑level control software can directly read D201832L operating parameters for fast power‑related fault localization.
- Modular slot‑in structure for simple assembly & disassembly, low skill threshold for spare‑part replacement.
Application Fields
- Pulp & paper production line DCS control system, paper machine process control rack
- Mineral processing, grinding and flotation process automation control cabinets
- Chemical plant distributed control systems
- Large‑scale automated complete water‑treatment control equipment
- Thermal power auxiliary PLC / controller racks
- Retrofit and spare‑part replacement projects for legacy Metso/Valmet automation systems
Brand‑Internal Product Comparison
- D201832L is a combined IPSP power & processor board handling both power supply and board‑level computation.
- Vs ordinary power module D201784L: D201784L performs only power conversion without processing capability and must pair with separate CPU board; D201832L integrates basic processing unit and saves rack slot occupancy.
- Vs CPU board D202275: D202275 executes main logic computation and provides no system power output; D201832L cannot run full control logic independently, and the two shall work cooperatively.
- Vs IO boards D201815L/D201133L: IO boards only handle field signal acquisition & output; D201832L serves as the core for rack power and low‑level management, and all IO boards rely on its output power rails.
Matching Companion Products
- D202214 Controller Base Rack
- D202275 ACN MR Main CPU Module
- D201784L Rack Backplane Module
- D201815L Digital Input Module
- D201133L Digital Output Module
- MBM80 IBC Rack Unit
FAQ
Q：Can D201832L directly replace DDC8330‑D201832L?
A: DDC8330‑D201832L is a complete material alias for hardware body D201832L. Direct interchange is allowed under identical hardware revision.
Q：Can D201832L run the full controller by standalone power‑on?
A: No. D201832L only provides power supply and low‑level management. It must work with main CPU module D202275, and full rack configuration is required for process control.
Q：What typical on‑site symptoms will appear when D201832L fails?
A: No power output from the whole rack and all controller modules fail to start; frequent system power alarms; random dropout of partial IO modules and intermittent communication interruption.
Q：Is program re‑download required after D201832L replacement?
A: No user process program download is needed. Only confirm matching hardware revision after replacement; user programs are stored inside CPU board.
Q：Can D201832L be used in outdoor cabinets?
A: IP20 protection class supports indoor cabinet installation only. Not for direct open‑air outdoor deployment; ambient temperature shall stay within 0‑55℃.
Q：What key information shall be checked when purchasing D201832L spare parts?
A: Check hardware revision number, rack model and input voltage specification, and confirm the existing system is ACN CS controller stack.
Q：Is board‑level repair available for damaged D201832L?
A: Board‑level detection & repair is feasible, yet repair cost may be high upon failure of partial internal power devices. Spare parts with complete functional test are preferred.
Recommended Related Models
- D201784L, Rack Backplane Module
- D202275, ACN MR CPU Controller Module
- D202214, Controller Base Rack
- D201815L, Digital Input Module
- D201133L, Digital Output Module
- D201138L, Analog Input Module
- D201189L, Analog Output Module
- A413127, Analog Input Unit
- A413160, Communication Interface Module
- VBU‑320, Basic Unit Module
- MXN7000, Network Processing Module
- D20113BL, Digital IO Combined Module
- A413110, Fieldbus Interface Module
Precautions
- Power off the rack and release static electricity before installing D201832L. Static electricity may damage onboard chips.
- Strictly verify input voltage. Wrong high‑voltage input will burn out power circuit of D201832L directly.
- Ensure no oxidation or dust accumulation on backplane slot contacts upon installation; poor contact will cause unstable power supply.
- D201832L is dedicated for ACN CS series and cannot be directly compatible with other Valmet DNA series controller racks.
- Complete power, communication and diagnostic function tests for spare parts before putting into production process.
- Do not exceed 0‑55℃ operating temperature; high‑temperature environment will shorten service life of D201832L hardware.
