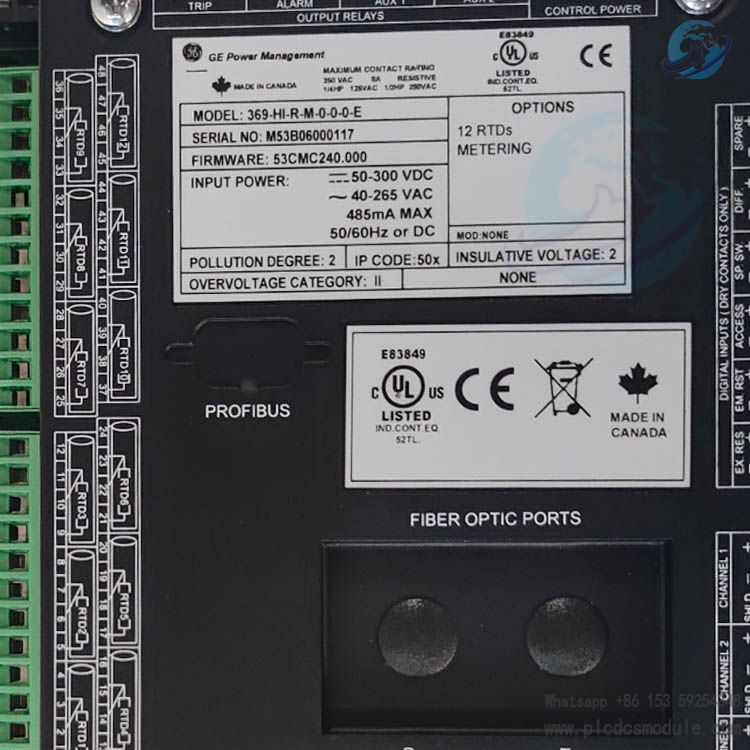

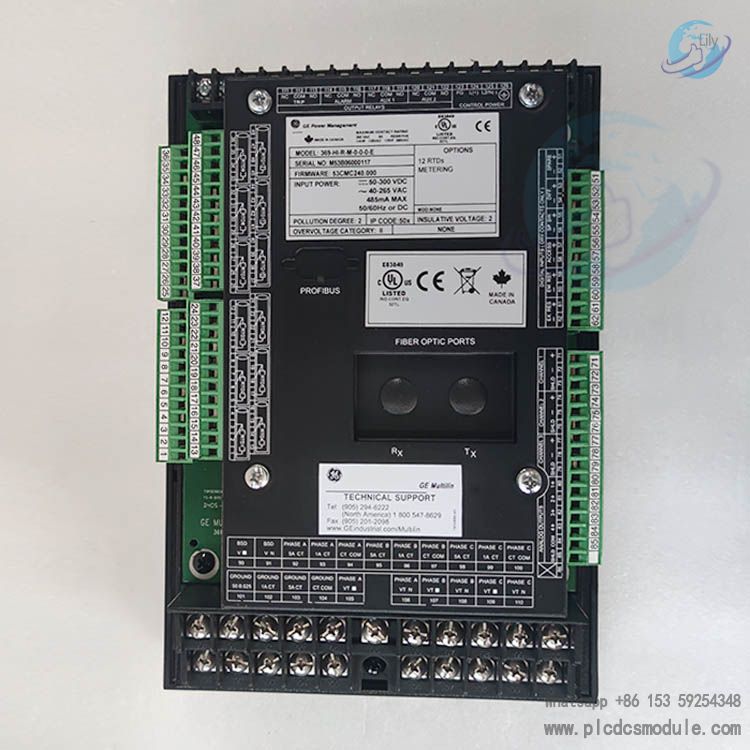

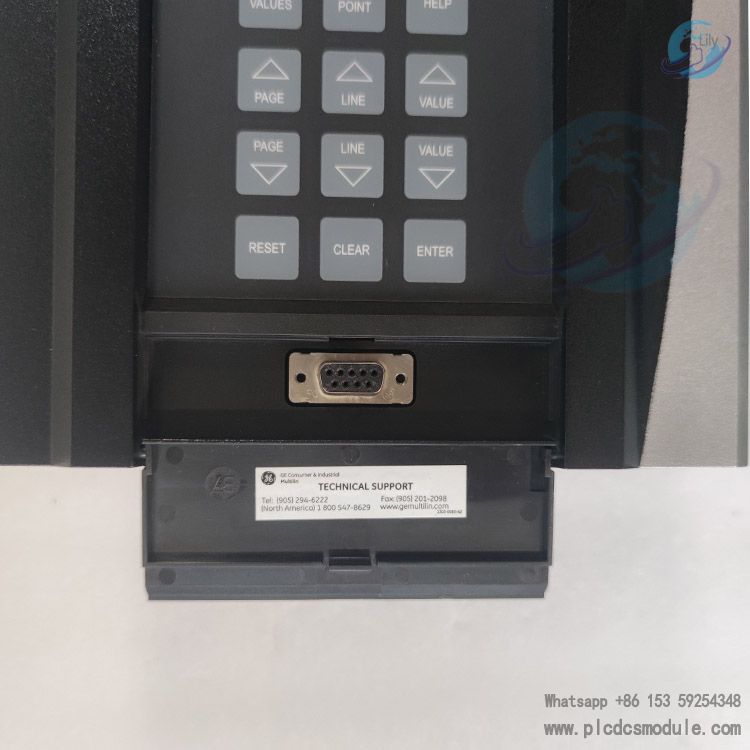

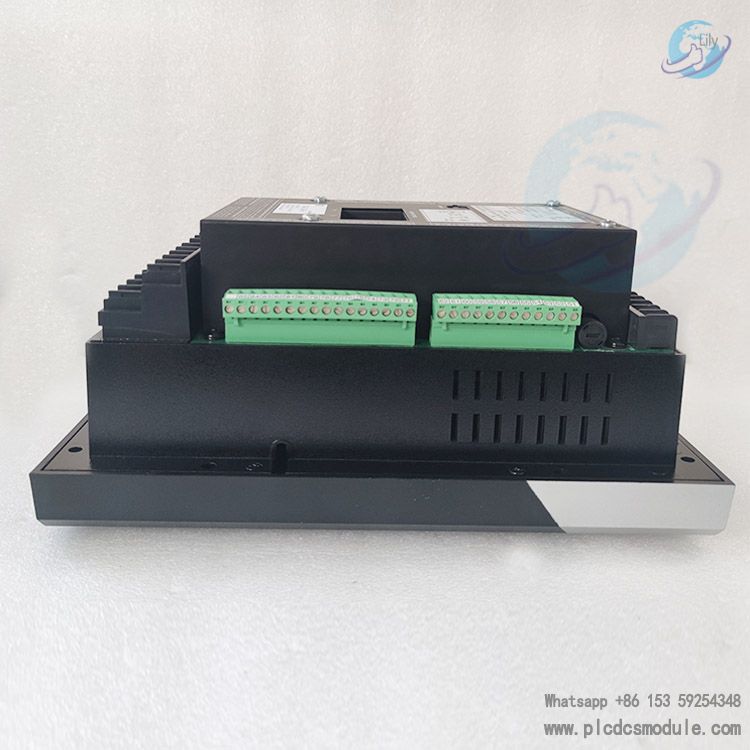

GE 369-HI-R-M-0-0-0-E 369 Motor Management Relay

369-HI-R-M-0-0-0-E is a motor management relay in the GE Multilin series. It is mainly used to protect and control motors and their related equipment, prevent faults such as overload and short circuit, and ensure the safe operation of motors. The product supports multiple installation methods, making it convenient for users to choose according to actual situations. With a compact design and certain protective capabilities, it can adapt to various working environments. The 369-HI-R-M-0-0-0-E relay can also monitor the operating status of motors, record relevant information, and provide references for motor maintenance and other work, making it one of the commonly used devices in the field of motor management.

DATA SHEET

369 Motor Management Relay Instruction Manual.pdf

• Input Voltage: 50-300 VDC or 60-265 VAC.
• Output Voltage: 0-250 VAC.
• Input Current: 1A or 5A.
• Rated Current: 10A.
• Frequency: 50-60Hz.
• Protection Class: IP20.
• Operating Temperature Range: -40°C to +70°C.
• Storage Temperature Range: -40°C to +85°C.
• Humidity Range: 5% to 95%.
• Communication Interface: Supports Modbus/TCP and RS-485 protocols.

• Dimensions: Approximately 29.21cm in height × 13.97cm in width × 21.59cm in length.
• Weight: Approximately 1.5 kg.
• Installation Method: Supports DIN rail mounting and can also be installed in a wall-mounted manner, which is convenient for users to install according to actual needs.

Product Features

High Reliability: Adopts high-quality components and strict production processes to ensure long-term stable operation.

Versatility: Integrates multiple protection functions, including overload protection, short-circuit protection, undervoltage protection, phase loss protection, etc. It can also monitor the motor's operating status in real time and support control functions such as motor start, stop, and speed regulation.

Intelligence: It can monitor the motor's operating status in real time and has an event recording function. After tripping, it can immediately report the cause of the trip as well as the temperature and data values at the time of tripping. It can also protect the motor through functions such as pre-trip alarm and over-torque correction.

• Industrial Automation: Used in industrial production lines, motor drive systems, etc., and can protect equipment such as fans, water pumps, and conveyor belts.
• Power Systems: Can be used to protect equipment such as transformers and generators, and is also applicable to power plants, substations, power distribution systems, etc.
• Petrochemical Industry: Commonly used to protect equipment such as pumps and fans.
• Other Fields: It is also widely used in fields such as transportation, metallurgy, construction, and agriculture, such as transportation systems like railways and aircraft, power supply and distribution systems and fire protection systems in building automation, etc.
