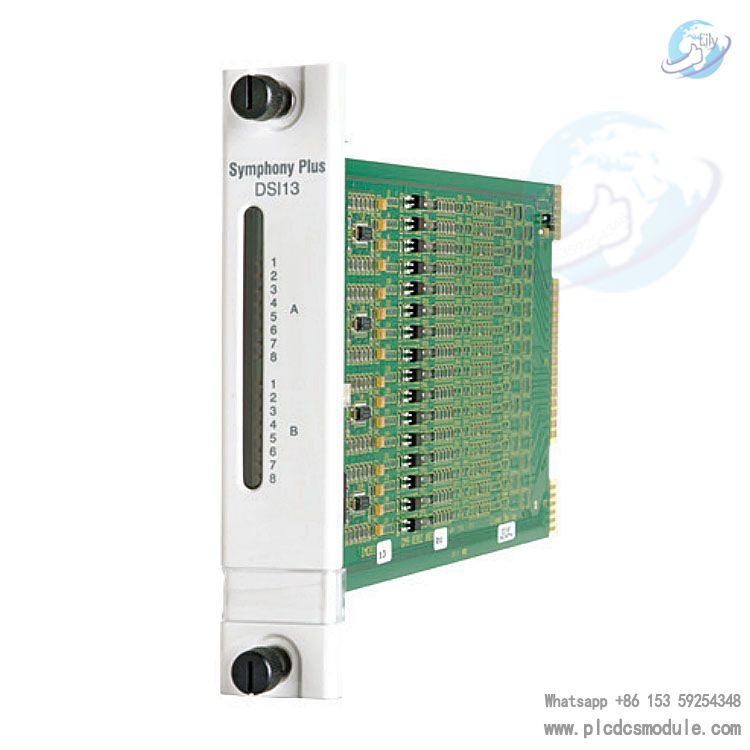

ABB SPDSI13 is a professional digital input module belonging to the HR Series. Specifically designed for industrial automation control systems, it can accurately receive and process digital signals. This module features 16 input channels, enabling efficient connection with various on-site sensors and switching devices. It transmits the discrete digital signals generated by these devices to the control system, and is capable of tasks such as monitoring the start-stop status of equipment and the opening-closing signals of valves. Highly compatible with systems like ABB Bailey Infi 90, it can be seamlessly integrated into various complex industrial scenarios. It is widely used in industries such as electric power, chemical engineering, and metallurgy, contributing to the efficient operation and precise control of industrial automation.
DATA SHEET
Technical Parameters
Power Supply Requirements: 5 VDC ± 5%, typical current 95 mA.
Digital Input Channels: 16 optoelectronically isolated channels.
Input Current: 5.5 mA.
Input Voltage: 24 VDC.
Ambient Temperature: 0 °C to 70 °C (32 °F to 158 °F).
Applications and Features
Isolation Design: Each input channel uses optoelectronic isolation to enhance anti-interference capability and system safety.
Compatibility: Suitable for HR Series controllers, and can be integrated into the Symphony Plus automation system to receive on-site digital signals (such as switch status, sensor signals, etc.).
Installation and Connection: Usually used in conjunction with corresponding terminal units (such as NTDI01, etc.) to realize the connection between field lines and the module.
Relevant Instructions
This module belongs to the digital input module series of the HR Series. Other modules in the same series include SPDSI14 (48 VDC input), SPDSI22 (configurable 24 VDC/48 VDC/125 VDC/120 VAC input), etc., which are respectively applicable to digital input scenarios with different voltage levels.
It can be configured and managed through the S+ Engineering tool, and seamlessly integrated with other components of the Symphony Plus system (such as controllers, communication modules, etc.), supporting real-time signal acquisition and control in industrial fields.
