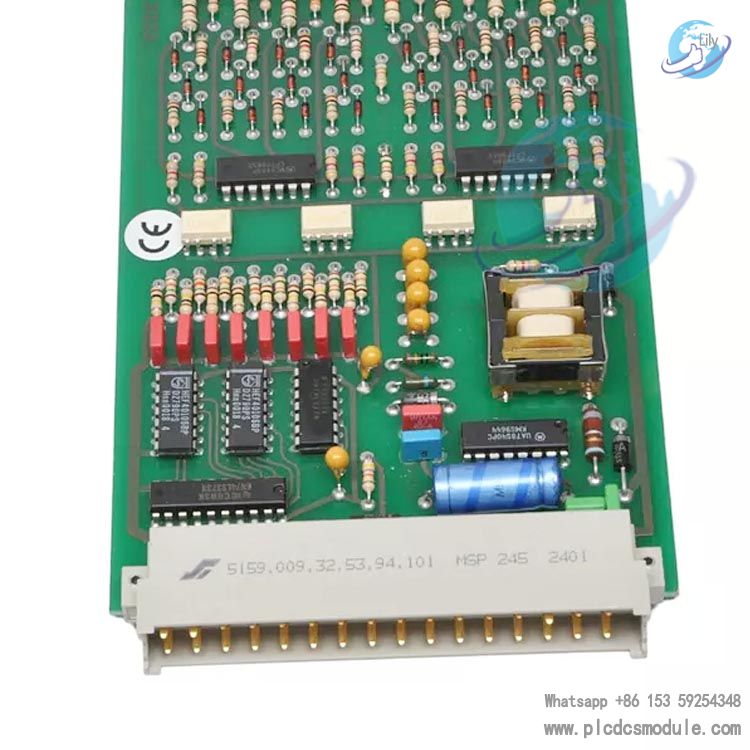

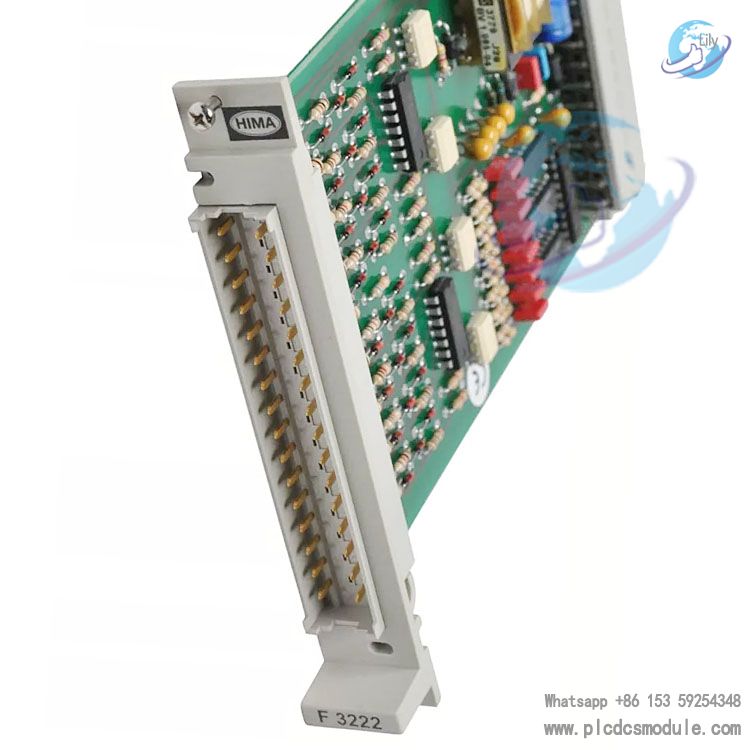

HIMA F3222 8-channel input module F 3222

The HIMA F3322 is a high-performance 16-fold output module designed for critical industrial control systems, featuring safety isolation, versatile load compatibility, and robust short-circuit protection. Engineered to meet strict industrial standards with CE certification, it delivers reliable switching for resistive or inductive loads up to 500 mA (12 W) per channel, making it ideal for automation, process control, and safety-related applications where precision and durability are non-negotiable.

File Download:

HIMA F3322.pdf

Core Specifications

• Load Capacity: Supports resistive/inductive loads up to 500 mA (12 W) per channel, with lamp connections up to 12 W.
• Safety & Protection: Equipped with safety isolation and short-circuit proof design, current limiter response value > 550 mA.
• Power Requirements: 5 V DC (110 mA) and 24 V DC (150 mA additional load) for flexible integration.
• Mechanical Data: Space requirement of 4 TE, compatible with flat pin plugs (2.8 x 0.8 mm², q=1 mm², l=750 mm).

Key Features & Advantages

1. Versatile Load Compatibility

Works seamlessly with both resistive and inductive loads, covering a wide range of industrial devices like lamps, actuators, and solenoids.

2. Safety-Centric Design

Safety isolation ensures protection against electrical hazards, while the module cuts off output signals if the L- supply breaks, preventing system malfunctions.

3. Optimized System Integration

Each IO subrack can accommodate up to 10 F3322 modules (nominal load), with a maximum simultaneous switching load of 8 A (half of 16 x 0.5 A) and standard 4 A slow fusing for stable operation.

4. Standardized Cabling

Supports LiYY 16 x 0.5 mm² and LiYY 32 x 0.5 mm² cables, with clear channel-color coding and lead marking (Z 7136 / 3322 / C.. series) for easy installation and maintenance.

Technical Details

Operating Conditions

• Compatible with 24 V DC power supply (L+ / L- connections).
• Short-circuit proof to ensure system integrity during electrical faults.

Channel Configuration

• 16 independent output channels with dedicated connections (d2-d32 / b2-b32) and color-coded wiring for quick identification.
• 2-pole connection option for enhanced wiring flexibility (part no. 26 810 4004 e suggested for 1N4007 type).

Compliance & Certification

• CE certified, adhering to international industrial safety standards.
• Technology subject to updates per HIMA Paul Hildebrandt GmbH + Co KG specifications.

Application Scenarios

Ideal for use in process automation, manufacturing control systems, energy plants, and safety instrumented systems (SIS). It excels in environments requiring multiple output channels with reliable load switching, safety isolation, and resistance to harsh industrial conditions.

Why Choose HIMA F3322?

HIMA’s legacy of engineering safety-critical industrial components ensures the F3322 delivers unmatched reliability, compatibility, and protection. Its compact design, standardized cabling, and strict load management make it a cost-effective solution for industrial control systems needing high-performance 16-fold output capabilities.
