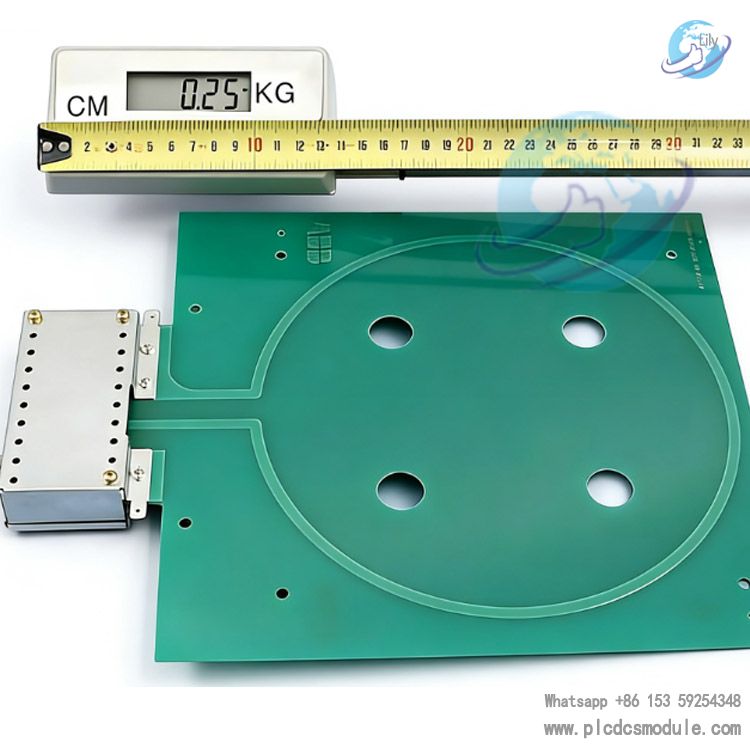

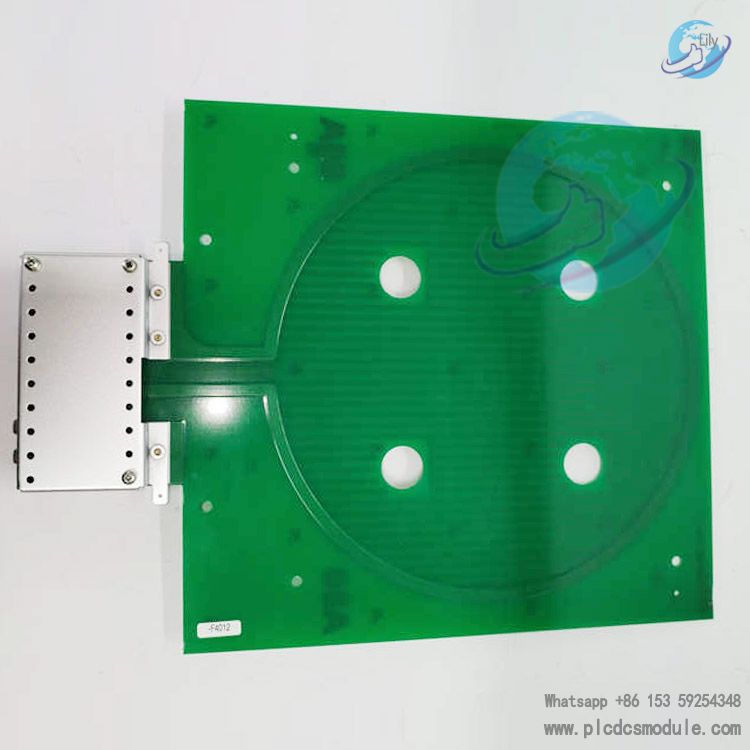

The ABB UFC789AE101 (Order No. 3BHE014023R0101) is a coating-reinforced Fast Switching Control Device (FSCD) board. As a core control and signal processing module within ABB industrial control systems, it is specifically designed for high-precision, high-response control scenarios in high-voltage variable frequency drives, electric traction, and IGCT (Integrated Gate Commutated Thyristor) power electronic equipment.
Featuring an industrial-grade coating process, this module boasts strong resistance to corrosion, moisture, and dust. It can operate stably over the long term in harsh industrial environments ranging from -25°C to +70°C.As the signal interface and control hub, it integrates photoelectric isolation, high-speed signal processing, multi-channel I/O control, and an internal 24VDC power supply. It facilitates reliable signal interaction and command transmission between the upper-level control system and power units, sensors, and actuators.Widely compatible with high-end control systems such as ABB 800xA and AC 800PEC, it meets the stringent requirements for exceptional control real-time performance, safety, and stability across industries including power, metallurgy, petrochemicals, and new energy.
download
UFC789AE101 3BHE014023R0101.pdf
Technical Specifications
- Basic SpecificationsModel: UFC789AE101Order Code: 3BHE014023R0101Product Type: FSCD Control Board (coated type)Country of Origin: SwitzerlandDimensions: Approx. 160mm × 60mm × 35mmWeight: Approx. 0.2–0.3kgProtection Features: Three-proof coating on surface, dustproof, moisture-proof and corrosion-resistant
- Electrical ParametersInternal Operating Power Supply: 24VDC (built-in power supply)Digital Inputs: 10 isolated digital inputs, optocoupler isolatedDigital Outputs: 4 floating double-throw relay outputs, max. load 30VDC/1AAnalog Outputs: 4 configurable outputs (0/4–20mA, factory default 4–20mA), electrically isolatedCommunication Interfaces: RS-485 (Modbus-RTU), single-mode fiber EthernetIsolation Voltage: 2500VAC isolation between input / output / power supplySwitching Frequency: Supports high-frequency control up to 30kHz
- Environmental ParametersOperating Temperature: -25℃ ～ +70℃Storage Temperature: -40℃ ～ +85℃Relative Humidity: 5%–95% (non-condensing)Vibration Resistance: Compliant with IEC 60068-2-6, suitable for industrial on-site vibration environments
Functional Features
- High-speed opto-isolated signal processingEquipped with high-performance built-in optocouplers to achieve complete electrical isolation between control signals and power circuits, blocking interference transmission and ensuring control signal accuracy and system safety. Signal response delay is as low as microsecond level to meet high-frequency switching control requirements.
- Multi-channel I/O integrated controlIntegrates 10 digital inputs, 4 digital outputs and 4 analog outputs. It can connect multiple sensor signals and output multiple control commands simultaneously, adapting to complex multi-loop control scenarios and reducing the number of external modules.
- Coated reinforced industrial-grade designThe entire board is coated with three-proof coating (moisture-proof, salt-fog-proof, dust-proof), suitable for harsh working conditions such as humidity, dust and corrosive gases. It reduces environmental erosion on the circuit board, extends service life and improves operational reliability.
- Comprehensive protection mechanismsIntegrates overcurrent, overvoltage, undervoltage, short-circuit protection and surge suppression functions. It automatically triggers protection actions under abnormal conditions to avoid damage to the module and external devices. Supports fault waveform recording and event logging for easy fault tracing.
- Flexible communication and system compatibilitySupports Modbus-RTU, industrial Ethernet and other protocols, enabling seamless connection with ABB 800xA, AC 800PEC and third-party PLC/DCS systems. Supports local and remote monitoring, parameter configuration and status feedback.
- Stable built-in power supplyFeatures an onboard 24VDC power supply with no need for an external independent power module, simplifying system wiring, ensuring power stability and reducing interference risks from external power sources.
Installation and Maintenance
1. Installation Specifications
Installation Environment
Install the module in a control cabinet, ensuring an ambient temperature of -25℃～+70℃, humidity ≤95% non-condensing. Keep away from strong electromagnetic interference sources, heat sources and corrosive gases. The control cabinet shall be well ventilated to avoid dust accumulation.
Mechanical Installation
Use standard DIN rail mounting or screw fixing. Handle with care during installation to avoid damage to the circuit board caused by impact or vibration. Tighten the fixing screws with a torque of 0.5–0.8 N·m to prevent over-tightening from damaging the PCB.
Wiring Requirements
Disconnect all power to the system before wiring and wait 10 minutes for internal capacitors to fully discharge.
Use shielded cables for digital/analog signals and communication lines, with the shield grounded at one end. The cable cross-section shall meet current requirements (≥0.5 mm² for signal circuits, ≥1.0 mm² for power circuits).
Connect strictly according to the wiring diagram and tighten terminal screws to 0.4–0.6 N·m to prevent loosening. Hot-plugging of the module and terminals is strictly prohibited.
When the analog output is connected to inductive or capacitive loads, a protective resistor in series or a freewheeling diode in parallel is required to avoid damage to the module from back electromotive force.
Grounding Specifications
The module protective earthing terminal shall be reliably connected to the system earthing grid, with earthing resistance ≤4 Ω, to ensure static discharge and interference shielding.
2. Routine Maintenance
Daily Inspection (Weekly)
Check the module status indicators to ensure normal operation of the run, communication and fault LEDs.Inspect ambient temperature and humidity, cabinet ventilation, and clean dust on and around the module.Listen for abnormal noise and check terminals for looseness, overheating or ablation marks.
Periodic Maintenance (Yearly)
Thoroughly clean the module surface and terminals using compressed air; liquid cleaners are prohibited.Retighten all wiring terminals and test insulation resistance (normal value >20 MΩ).Back up module parameters, check fault records and clear non-critical historical fault logs.Calibrate analog output accuracy to ensure 4–20mA output error ≤±0.1mA.
3. Safety Precautions for Maintenance
Disconnect power and wait for full discharge before maintenance; live operation is strictly prohibited.Wear an anti-static wristband during operation to avoid static damage to chips and components.Do not disassemble or repair the module by yourself in case of failure; contact ABB official service or authorized service providers.Long-term idle modules shall be stored sealed in a dry, dust-proof environment and fully inspected before reuse.
Frequently Asked Questions (FAQ)
Q1: The run LED does not light up after power-on. How to troubleshoot?A:
- Check whether the 24VDC power supply is normal, with voltage fluctuation within ±10%.
- Verify correct polarity of power wiring and tight terminals.
- Check if internal power protection is triggered; restart after power-off.
- If the problem persists, internal power supply failure is likely; return for factory repair.
Q2: No feedback from digital input signals. What are the causes?A:
- Confirm the input signal type (NPN/PNP) matches the module configuration.
- Check for open or short circuits in signal cables and proper grounding of the shield.
- Verify input voltage is within the standard range of 18–30VDC.
- Check if the corresponding input channel is damaged by overvoltage; switch to a spare channel or replace the module.
Q3: Analog output signal drifts or lacks accuracy. How to resolve?A:
- Check loose wiring and good grounding to eliminate interference.
- Verify the load does not exceed the limit (≤500Ω) to avoid voltage drop from excessive load.
- Recalibrate analog output parameters via system software.
- In case of severe drift, internal circuit aging may be the cause; return for factory calibration.
Q4: The module shows communication failure and cannot connect to the host computer. How to handle?A:
- Check secure connection of RS-485/fiber optic cables and clean or damaged fiber connectors.
- Confirm communication parameters (protocol, baud rate, address) are consistent with the host computer.
- Check if the communication bus is affected by strong electromagnetic interference; optimize wiring or add shielding.
- Restart the module and host communication module to re-establish connection.
Q5: Does coating damage affect module performance? How to deal with it?A:Coating damage reduces moisture and corrosion resistance, which may lead to circuit corrosion or short circuits under long-term harsh environments. Minor damage can be repaired with special three-proof paint. For extensive damage, returning for recoating is recommended to avoid failure risks.
Q6: The digital output relay contacts are stuck and cannot switch normally. What to do?A:
- Cut power immediately and check if the output load exceeds the rated 30VDC/1A; reduce load or add relays if overloaded.
- Do not force switching when contacts are stuck; use a spare output channel.
- For frequent sticking, replace the internal relay or connect an external high-power relay to expand load capacity.
Applications
- Power Industry: Control and signal interaction for high-voltage inverters, SVG (Static Var Generator), and IGCT power units.
- Metallurgy Industry: High-precision switching control for rolling mill drives, electric arc furnaces and aluminum electrolysis equipment.
- Petrochemical Industry: Variable frequency control for compressors and pumps, adapting to humid and corrosive conditions.
- New Energy: Signal processing and control command output for wind power converters and photovoltaic inverters.
Industrial Manufacturing: High-speed I/O control and signal isolation for high-end automated production lines and servo control systems.
