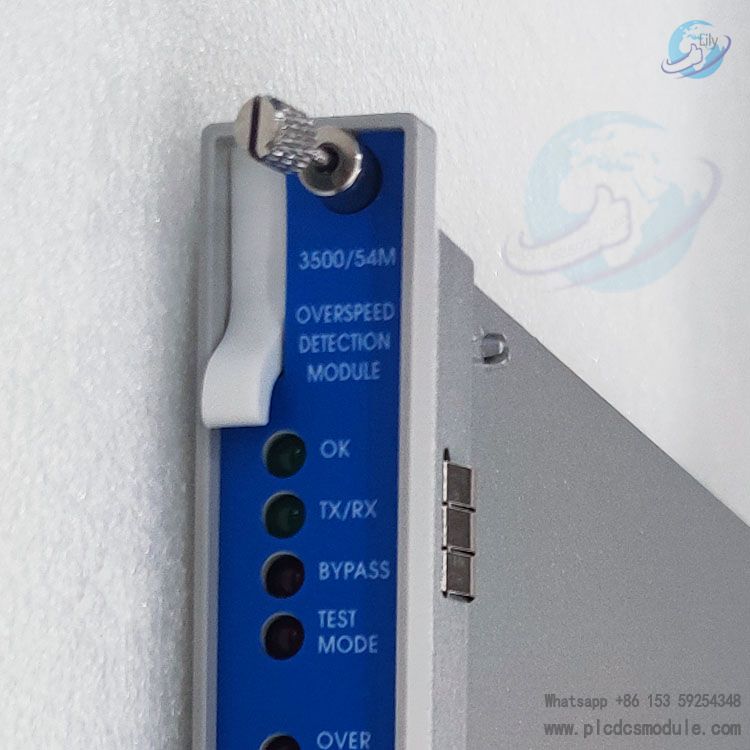

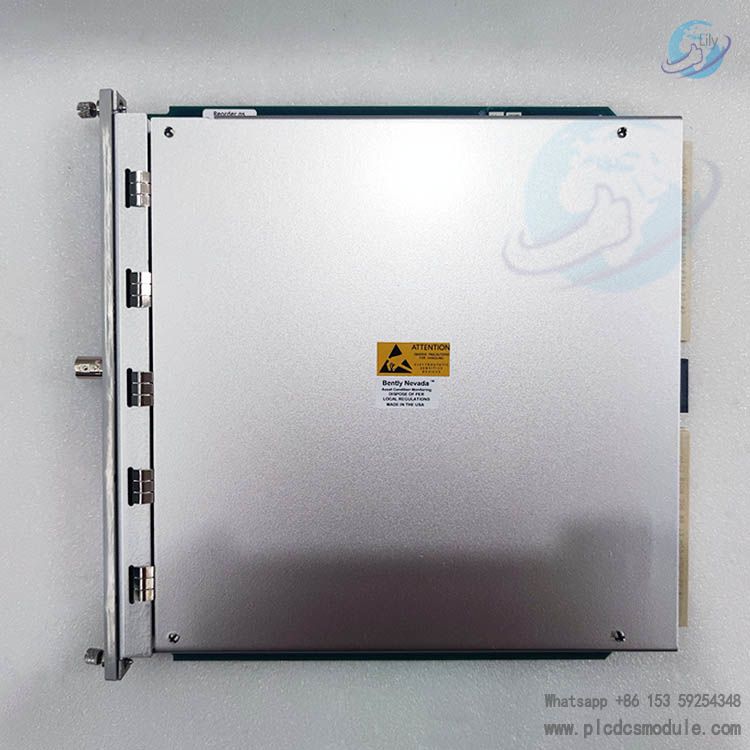

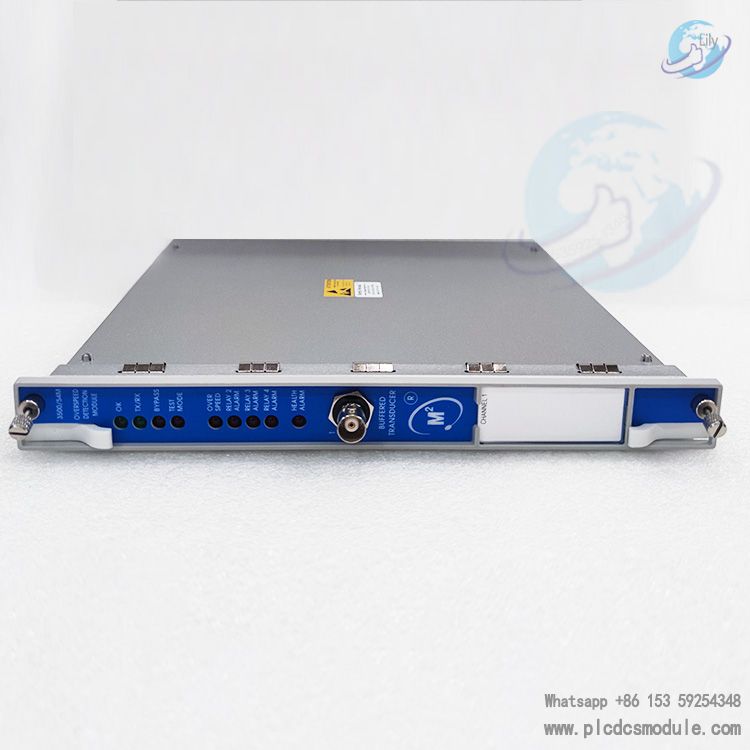

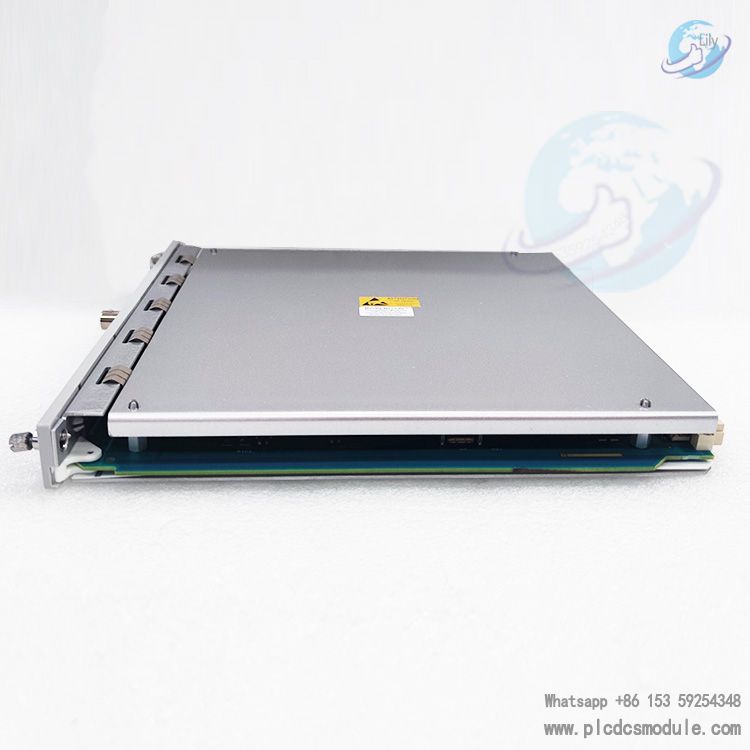

Note; All products on this site are special products, the market price has been fluctuating, the specific customer service offer shall prevail, because the product is a new product, the picture is not a real shot, please confirm with customer service before placing an order model and product, price and other details, the site used, new are for sale, please contact customer service communication. The GE/Bently Nevada 3500/54 286566-01 Overspeed Detection Module is a product designed for the protection of critical industrial machinery and equipment. It features high precision and high reliability, and can operate stably in various complex industrial environments.
Basic Parameters

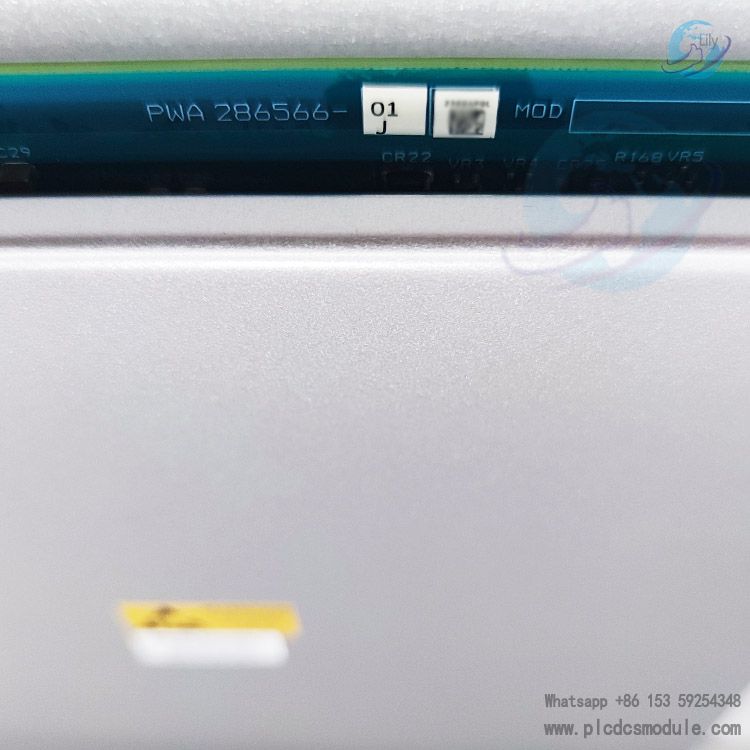

Series and Model: It belongs to the 3500/54M series, and its model number is 286566-01.
Function: Mainly used for overspeed detection, it accurately monitors the rotational speed of mechanical equipment and promptly detects overspeed situations.
Origin and Brand of the Product: It is manufactured by Bently Nevada in the United States.
Electrical Parameters
Input Voltage: Different sources vary in their statements, with 220V and 24V DC being mentioned respectively.
Output Frequency: It is 50kHz, enabling rapid transmission of detection signals.
Signal Output: The output signal is 2 - 20mA, facilitating signal interaction with other devices.
Performance Parameters
Detection Range: Some sources show that it can reach up to 10,000rpm at most, while others mention a maximum of 500rpm.
Accuracy: With an accuracy of ±0.1% of the full scale, it can accurately measure the rotational speed.
Response Time: Less than 20 milliseconds or less than 1 millisecond, it can respond quickly when an overspeed situation occurs, sending out alarms or taking corresponding measures.
Physical Parameters
Material: It is made of sturdy high - grade steel or stainless steel, ensuring the durability of the product and enabling it to work stably for a long time in harsh environments.
Dimensions: Different sources have different dimension data, such as 85mm x 100mm x 40mm, 2.6cm x 25.8cm x 24cm, 120mm x 85mm x 30mm, etc.
Weight: The weight ranges from 0.2kg to 0.75kg.
Environmental AdaptabilityOperating Temperature Range: It can operate normally in an environment ranging from - 40°C to + 70°C or from - 40°C to + 85°C, being able to adapt to temperature changes in various industrial scenarios.
Storage Temperature Range: Some sources mention that the storage temperature range is from - 100°C to + 260°C.
Humidity Requirement: The relative humidity is 90% without condensation.
Communication and Compatibility: It supports the proprietary protocol of Bently Nevada for communication, facilitating integration with other devices, achieving seamless connection of the system, and improving the overall operating efficiency and compatibility of the system.
Other Features: Some modules have a 16 - channel temperature monitoring function and can accept temperature inputs from Resistance Temperature Detectors (RTD) and Isolated Thermocouples (TC). It complies with international safety standards such as CE, UL, and CSA, providing safety assurance for equipment operation.
